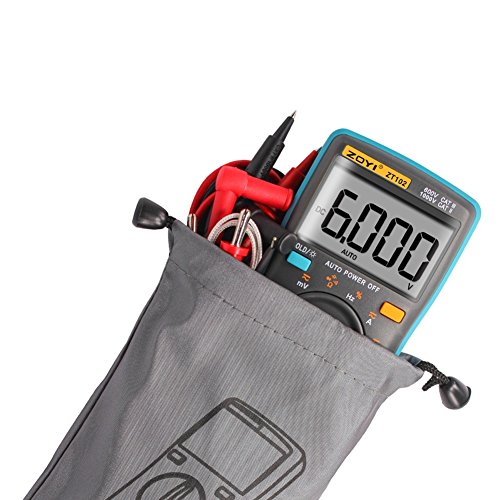

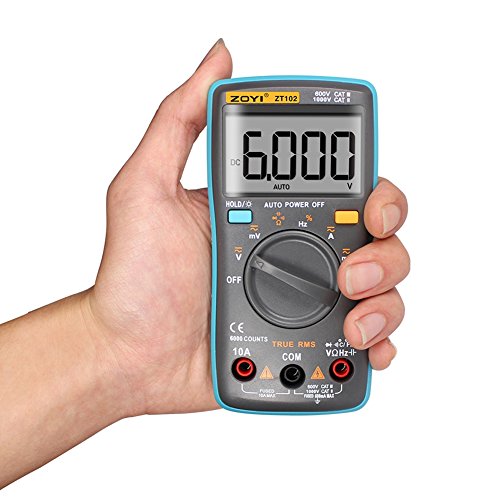

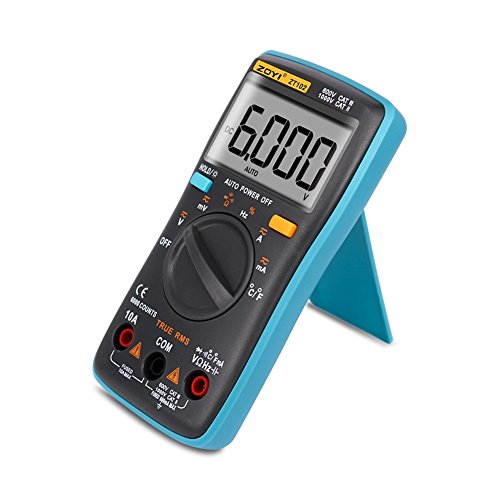

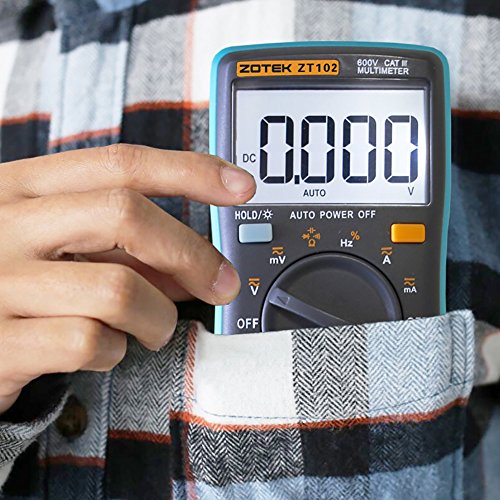

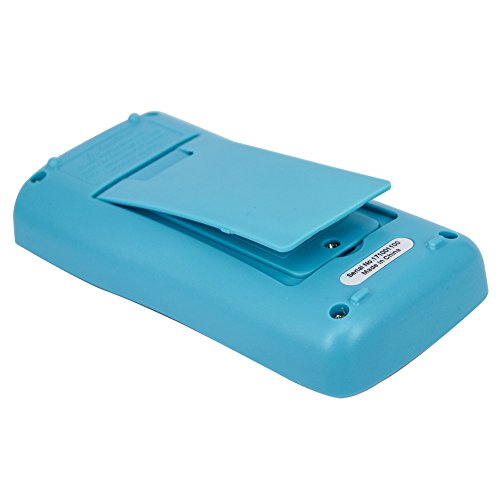

Multimeter,Balai digital multimeter ZT102 Auto-Ranging True-RMS Ranging Digital Multimeter Multi Tester Capacitance Test AC/DC Voltage Current Resistance Temperature Continuity Diode Transistor Meter Blau
14,99 €

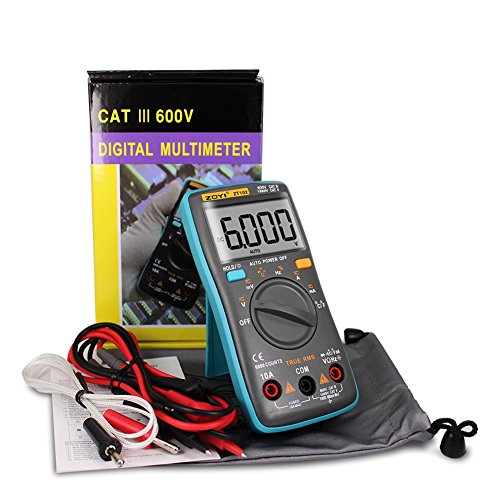

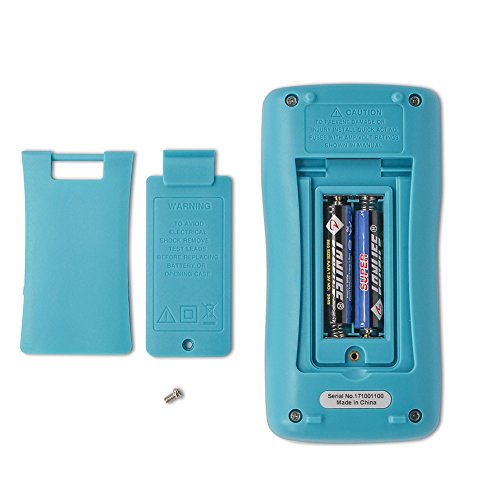

Zuletzt aktualisiert am: 19. Februar 2018 22:04 * frequency measurement range: to 10MHz 1Hz * capacitance measurement range: to 6000uF 10pF * AC voltage measurement range: to 750V 0.1mV * DC voltage measurement range: to 1000V 0.1mV * AC current measurement range: to 10A 0.1uA * DC current measurement range: to 10A 0.1uA * resistance measurement range: 0.1 60M to * width ratio measurement range: 1% to 99% Specification parameter: (1) frequency: 5/50/500/5k/50k/500k/5M/10M (+ 0.1+3) (2) capacitance: 10nF (+ 5.0+20), 100nF/1uF/10uF/100uF (+ 2.0%+5), 1000uF/10000uF (+ 5.0%+5) () (3) DC voltage: 600mV (+ 1.0%+10), 6V/60V/600V/1000V (+ 0.5%+3) (4) AC voltage: 600mV (+ 3.0%+3), 6V/60V/600V/750V (+ 1.0%+3) (5) DC current 600uA/6000uA (+ 1.5%+3), 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3) (6) AC current 600uA/6000uA (+ 1.5%+3), 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3) (7) resistance: 600 (+ 0.5%+3), 6K/60K/600K/6M (+ 0.5%+2), 60M (+ 1.5%+3) (8) measurement methods: double integral A/D converter (9) share ratio: 1% to 99% (+ 1%) (10) ultra range display: OL (11) working environment: 0~40 C, relative humidity < 80% Packages: 1* Multimeter 1* Portable waterproof bag 2* AAA batteries 1* User manual 1* a pair of test leads 1x Thermocouple Warm Tips: * Due to limitations in photography and the inevitable differences in monitor settings, the color of pictures showed may not be 100% the same with actual items. * Before payment, please double check the EXPECTED DELIVERY DATE and your delivery information:contact name, address,zip code,PHONE NUMBER(especially when you choosed Expedited Shipping) etc. * If you think we've done a good job, I would really appreciate it if you would leave us your valuable feedback. * Any question,please feel free to contact us before taking any further action. We will try our best to solve your problem.Thank you very much.
